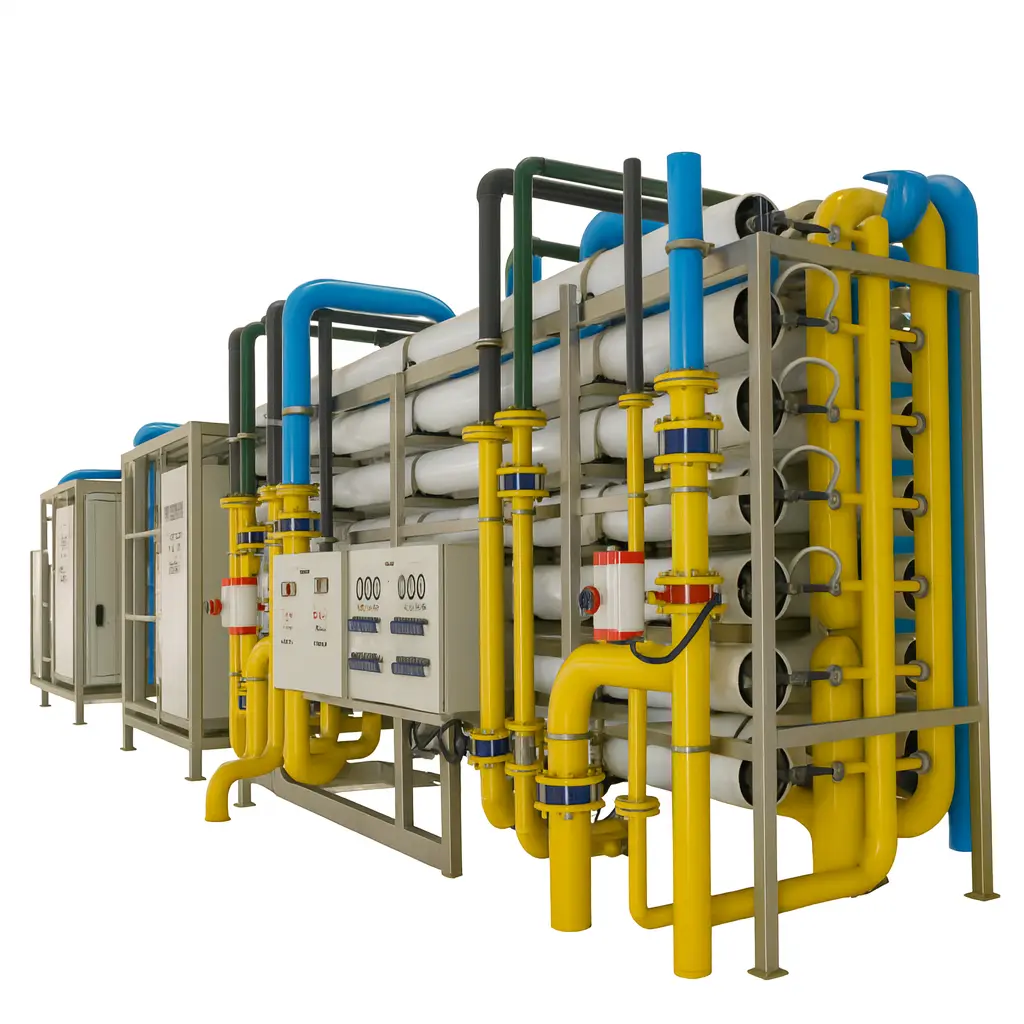

Reverse Osmosis (RO) System
The Reverse Osmosis (RO) System is a water purification technology that works by passing pressurized water through a semi-permeable membrane.
This process produces water with very low TDS (Total Dissolved Solids), making it suitable for applications such as drinking water, pharmaceuticals, food & beverage industries, and electronics.
Unlike coarse filtration, RO is an advanced purification process capable of removing up to 95–99% of salts, ions, heavy metals, and microorganisms from water.
Features & Advantages
Produces water with very high purity levels
Effectively removes TDS, ions, heavy metals, and microorganisms
Suitable for both seawater (SWRO) and brackish water (BWRO) applications
High recovery rate with efficient energy consumption
Technical Specifications
Category | Specification |
|---|---|
| Frame Material | Stainless Steel 304/316 |
| RO Membrane | Thin Film Composite (TFC) |
| Membrane Size | 4” × 40” or 8” × 40” |
| Recovery Rate | 50 – 70% |
| Rejection Rate | 95 – 99% (TDS, ions, heavy metals, microorganisms) |
| Flow Capacity | 1 – 500 m³/day |
| Operating Pressure | 10 – 20 bar (brackish water) / 50 – 70 bar (seawater) |
规格
| Water Treatment | Reverse Osmosis (RO) System |
