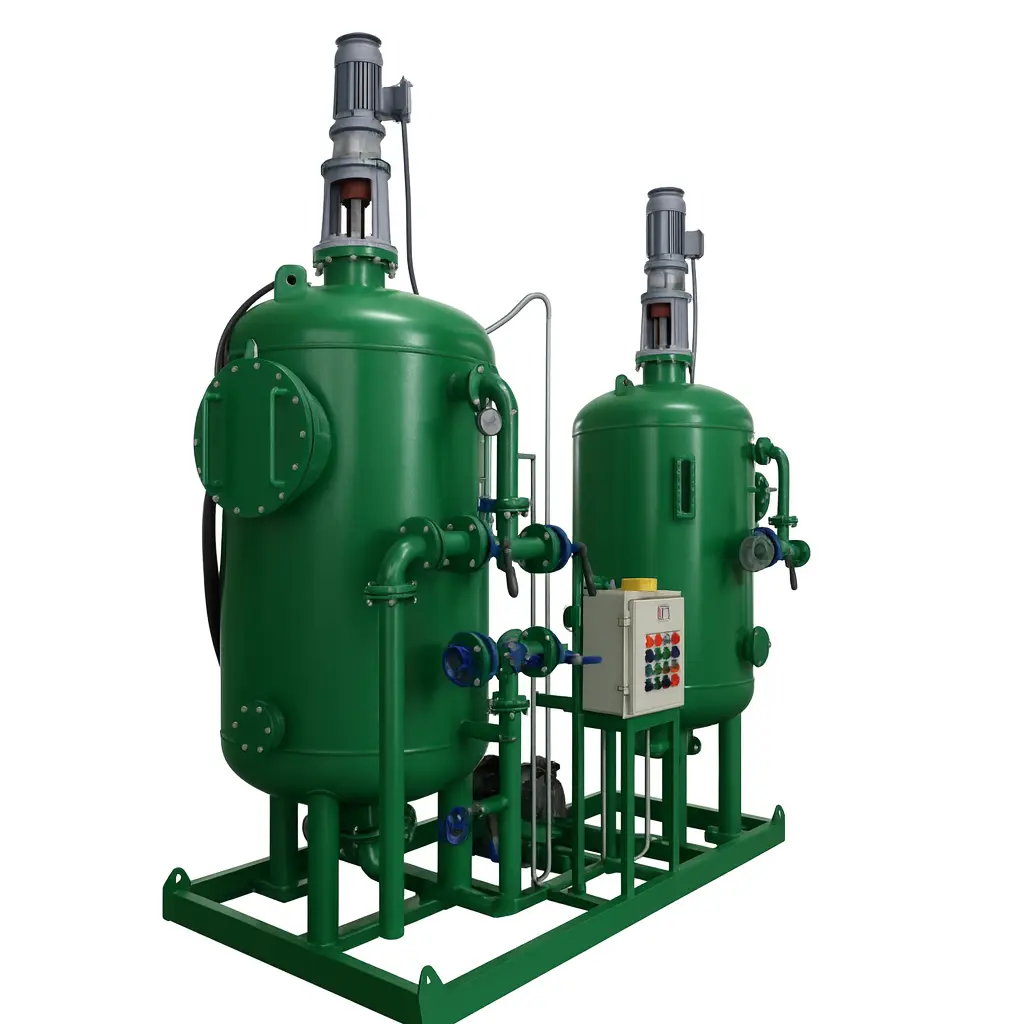

Automatic Softener / Filter Tabung Tekanan
The Automatic Water Softener is used to reduce water hardness by removing calcium (Ca²⁺) and magnesium (Mg²⁺) ions using sodium-based cation resin (Na⁺).
This system is equipped with an automatic multi-port valve, allowing resin regeneration to be performed without manual intervention.
It is primarily intended for water conditioning, not physical filtration, and is typically used to protect boilers, cooling towers, and Reverse Osmosis (RO) systems from scaling issues.
Key Features
Multi-port valve (manual/automatic).
Automatic regeneration using salt (NaCl brine tank)
Easy to operate and low maintenance
Technical Specifications
Category | Specification |
|---|---|
| Vessel Material | FRP / Stainless Steel / Carbon Steel + Epoxy |
| Vessel Diameter | 14” – 60” |
| Vessel Height | 150 – 200 cm |
| Media | Sodium-based cation resin (Na⁺) |
| Operating Pressure | 3 – 6 bar |
| Capacity | 1 – 50 m³/h |
规格
| Water Treatment | Automatic Softenrer |
