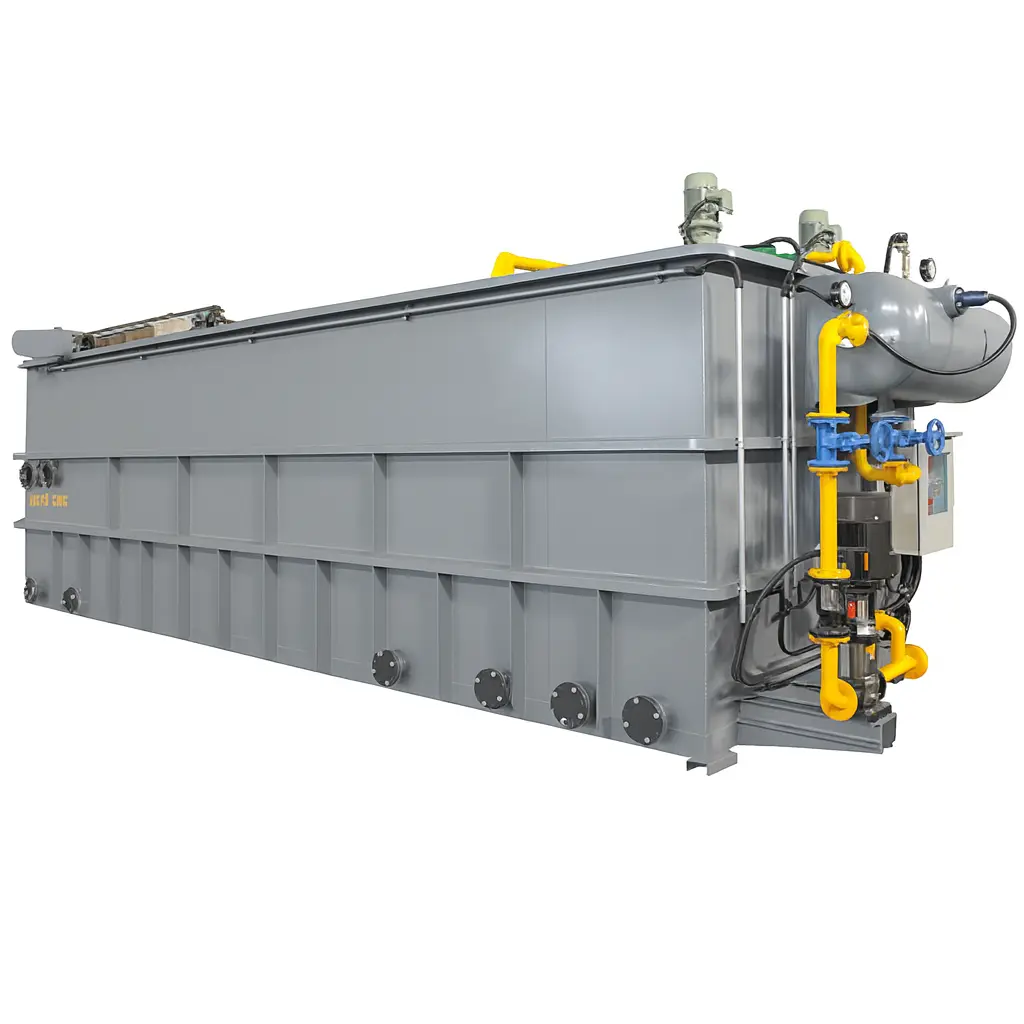

DAF (Variasi Lain) / Flotation System
This variation of the Dissolved Air Flotation (DAF) system works with the same principle as the vertical DAF, using micro air bubbles to separate oil, grease, and suspended solids from wastewater.
The difference lies in its horizontal design, which provides a larger capacity, making it suitable for high flow rates and continuous operation.
It is commonly used in industries with large wastewater volumes, such as food & beverage, oil & gas, and palm oil mills.
Features & Advantages
Larger capacity compared to vertical DAF
Horizontal design → ideal for continuous large flow applications
Equipped with sludge scraper and automatic scum removal system
High efficiency in reducing TSS, oil, and grease
Technical Specifications
Category | Specification |
|---|---|
| Tank Material | Carbon Steel / Stainless Steel |
| Flow Capacity | 50 – 1000 m³/h |
| Dimensions | Length 3 – 10 m (depending on capacity) |
| Removal Efficiency | Same as vertical DAF but optimized for higher volumes |
| Additional Features | Sludge scraper, Automatic scum removal system |
Specifications
| Water Treatment | Dissolved Air Flotation (DAF) Unit |
