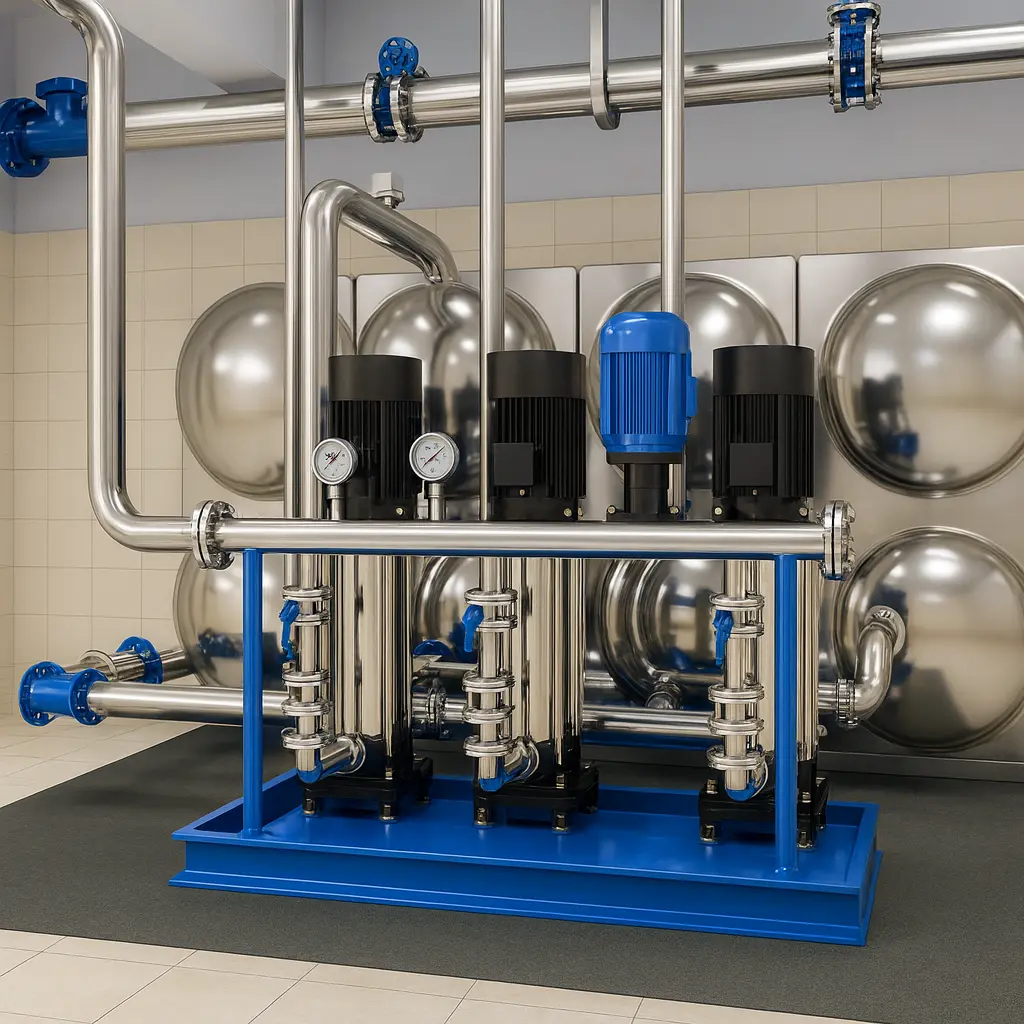

Booster Pump System
The Water Distribution Pump is designed to maintain stable water pressure within distribution networks such as hotels, hospitals, residential complexes, and industrial facilities.
It regulates water supply according to demand (flow & pressure) and is equipped with an automatic control panel (PLC / inverter), allowing pumps to operate on-demand for higher energy efficiency.
Features & Advantages
Ensures consistent and stable water pressure
Automatic operation with PLC or inverter-based control system
Energy-saving design with variable-speed pump operation
Multi-pump configuration for reliability and redundancy
Technical Specifications
Category | Specification |
|---|---|
| Materials – Piping & Frame | Stainless Steel 304 / Carbon Steel + Epoxy Coating |
| Pump Type | Multistage Centrifugal Pump (horizontal / vertical) |
| Number of Pumps | 2 – 6 units (operating alternately or in parallel) |
| Flow Capacity | 5 – 500 m³/h (depending on pump size and configuration) |
| Operating Pressure | 2 – 12 bar |
| Control Panel | PLC / Inverter (VFD) for variable pump speed control, auto start/stop based on pressure |
| Applications | Clean water distribution for high-rise buildings, hotels, hospitals, residential complexes, and industrial facilities |
Specifications
| Water Tank & Distribution | Booster Pump System |
